Pulmonary Circulation Pathway and Key Structures

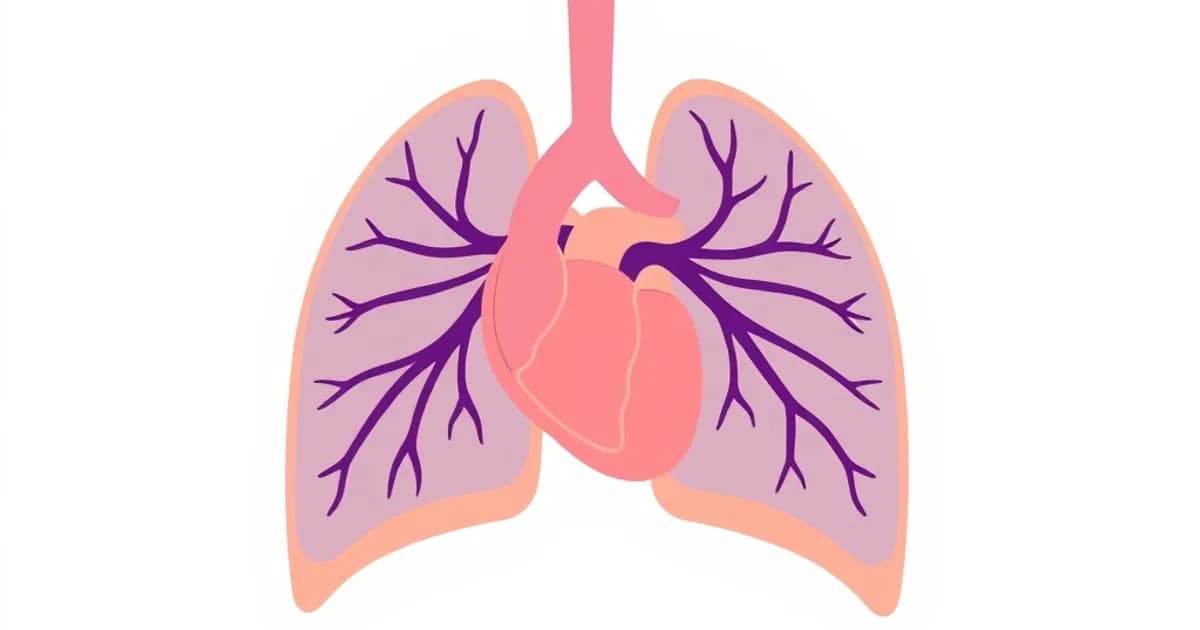

Pulmonary circulation begins at the right ventricle and follows a specific anatomical pathway through the lungs. Deoxygenated blood is ejected from the right ventricle into the pulmonary trunk, which quickly divides into the right and left pulmonary arteries.
Right and Left Pulmonary Arteries
The right pulmonary artery is shorter and wider, branching into three lobar branches to supply the three lobes of the right lung. The left pulmonary artery is narrower and longer, dividing into two lobar branches for the two lobes of the left lung.
These arteries continue branching into segmental arteries, subsegmental arteries, and smaller arterioles. They eventually terminate in capillary beds surrounding the alveoli, where gas exchange occurs.
Pulmonary Veins and Return to Heart
After gas exchange, oxygen-rich blood is collected by pulmonary venules that merge into larger pulmonary veins. Four pulmonary veins typically return to the left atrium: the right superior, right inferior, left superior, and left inferior pulmonary veins.
This arrangement creates an important distinction. Pulmonary arteries carry deoxygenated blood, while pulmonary veins carry oxygenated blood. This reversal from systemic circulation confuses many students but reflects the unique function of pulmonary vessels.
Anatomical Differences Between Pulmonary and Systemic Circulation
Pulmonary circulation and systemic circulation have fundamentally different anatomical structures adapted to their distinct functions. These differences explain why pulmonary diseases develop and progress differently than systemic vascular conditions.
Vessel Wall Structure and Pressure
Pulmonary arteries have thinner walls with less smooth muscle compared to systemic arteries. The right ventricle generates approximately 25/8 mmHg pressure, far lower than the left ventricle's 120/80 mmHg.
This low-pressure design allows the lungs to accommodate the entire cardiac output without fluid accumulation. The pulmonary vasculature also has higher compliance, meaning vessels stretch more easily to accommodate volume changes.
Capillary Density and Hypoxic Response
Capillary density in the lungs is exceptionally high, creating an enormous surface area for gas exchange. The pulmonary vasculature responds uniquely to hypoxia by constricting, whereas systemic vessels typically dilate when oxygen is low.
These anatomical adaptations make pulmonary circulation highly efficient for gas exchange. Understanding these differences helps explain why pulmonary hypertension, pulmonary edema, and other pulmonary vascular diseases develop differently than systemic vascular conditions.
The Alveolar-Capillary Interface and Gas Exchange
The alveolar-capillary interface is where actual gas exchange occurs in the lungs. Pulmonary capillaries form extensive networks surrounding alveoli, creating an incredibly thin barrier for gas diffusion.
Structure of the Alveolar-Capillary Membrane
The alveolar-capillary membrane consists of three layers: the alveolar epithelium, a shared basement membrane, and the capillary endothelium. This extremely thin barrier allows rapid gas movement between air and blood.
The total surface area available for gas exchange spans approximately 70 square meters in adult lungs. This vast area results from millions of alveoli, each surrounded by multiple capillary segments.
Gas Exchange Mechanisms
Gas exchange occurs through simple diffusion. Oxygen moves from alveolar air into deoxygenated blood, while carbon dioxide moves from blood into the alveolus.
Oxygen dissolves in plasma and binds to hemoglobin in red blood cells. Carbon dioxide exists in multiple forms in blood: dissolved CO2, bicarbonate ions, and carbaminohemoglobin.
Clinical Significance
The pulmonary circulation maintains low pressure to prevent fluid leakage into the alveolar space. Disruption of this interface through pulmonary edema, acute respiratory distress syndrome, or interstitial lung disease impairs gas exchange and becomes life-threatening.
Small changes in pulmonary vascular pressures or capillary integrity significantly affect respiratory function. This anatomical precision explains why pulmonary conditions can deteriorate rapidly.
Fetal Pulmonary Circulation and Anatomical Variations
In fetal circulation, pulmonary anatomy differs significantly because the lungs are non-functional in utero and contain fluid rather than air. The fetus relies on the placenta for gas exchange, not the lungs.
Fetal Shunts and Their Function
Fetal pulmonary circulation includes specialized shunts that bypass the lungs entirely. The foramen ovale is an opening between the right and left atria, allowing blood to bypass the right ventricle and non-functional lungs.
The ductus arteriosus is a vessel connecting the pulmonary artery directly to the descending aorta, further shunting blood away from the lungs. This arrangement makes physiological sense because the placenta handles all gas exchange.
Changes at Birth
At birth, profound changes occur when the infant takes its first breath. Alveoli expand with air, dramatically reducing pulmonary vascular resistance. This resistance drop causes increased blood flow to the lungs and pressure changes that functionally close the foramen ovale and ductus arteriosus within hours.
Over weeks, these shunts close permanently, becoming the fossa ovalis and ligamentum arteriosus. Understanding fetal pulmonary anatomy is clinically important because failure of these shunts to close causes congenital heart defects.
Anatomical Variations
Variations exist in the normal branching patterns of pulmonary arteries and veins among individuals. Approximately 25 percent of people have three, five, or six pulmonary veins instead of four.
These anatomical variations rarely cause problems but become significant during surgical planning or when interpreting imaging studies. Surgeons and radiologists must recognize these variations to avoid complications.
Clinical Relevance and Study Applications
Mastering pulmonary circulation anatomy directly applies to understanding common clinical conditions and disease mechanisms. This knowledge is essential for exams, clinical rotations, and evidence-based patient care.
Common Clinical Conditions
Pulmonary hypertension develops when pulmonary vascular resistance increases, forcing the right ventricle to work harder and eventually causing right heart failure. Understanding pulmonary vessel anatomy helps explain why chronic obstructive pulmonary disease, interstitial lung disease, or hypoxia cause vasoconstriction and pressure elevation.
Pulmonary embolism, where blood clots lodge in pulmonary arteries, becomes comprehensible through knowledge of the branching pattern and vessel distribution. Imaging interpretation on chest X-rays, CT angiography, or echocardiography requires recognition of normal pulmonary anatomical landmarks.
Effective Study Strategies
Flashcards are particularly effective for this topic because pulmonary circulation involves specific structural names, vessel branching patterns, directional flow, and functional relationships. Create flashcards that pair anatomical structures with their functions to reinforce memory through active recall.
Visual flashcards showing the pathway from right ventricle through the lungs back to left atrium strengthen spatial understanding. Test yourself repeatedly on vessel names, pressures, and anatomical relationships to build automaticity needed for clinical reasoning.
Medical students benefit from thoroughly understanding this system because it appears on licensing exams, clinical rotations, and board certifications. Spaced repetition ensures long-term retention of critical anatomical details.
