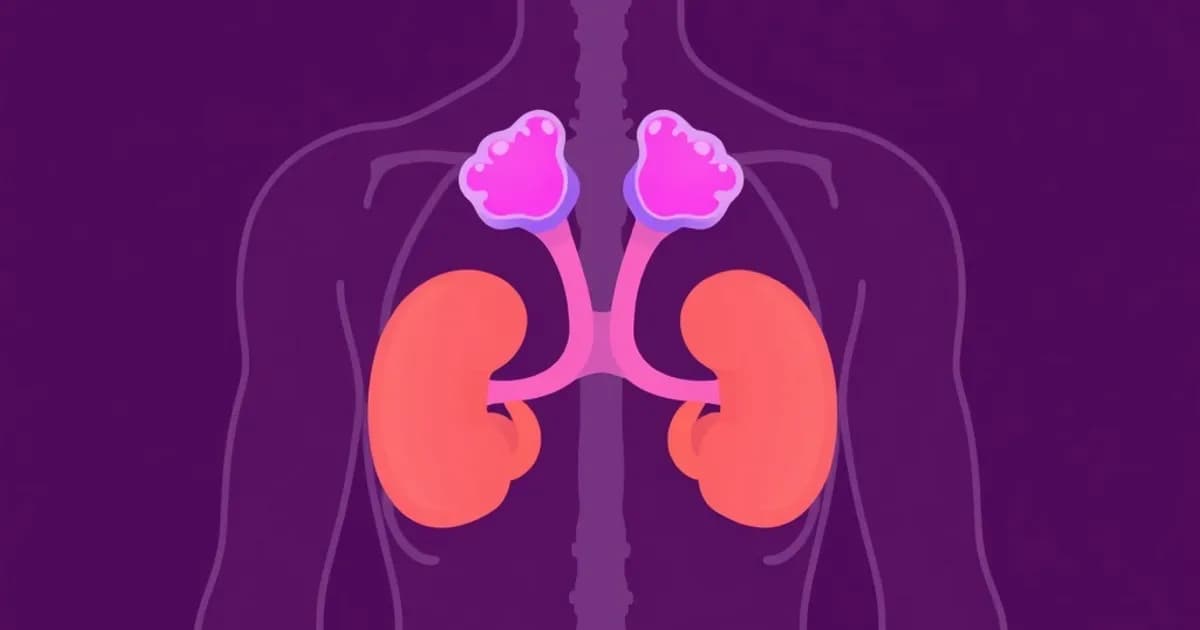

Gross Anatomy and Location of the Adrenal Glands
The adrenal glands sit on top of each kidney in the retroperitoneal space. They are covered by Gerota's fascia, which protects them. Each gland measures about 4-6 cm tall, 2-3 cm wide, and 1-1.5 cm thick.
Size and Position
Each gland weighs approximately 4-5 grams. The right gland typically sits higher than the left because of the liver's position. Despite their small size, they have an exceptional blood supply.
Blood Supply
Three arteries feed each gland. The superior adrenal arteries come from the inferior phrenic artery. The middle adrenal arteries branch directly from the abdominal aorta. The inferior adrenal arteries come from the renal artery.
Venous drainage differs on each side. The right adrenal vein drains directly into the inferior vena cava. The left adrenal vein drains into the left renal vein. This difference is clinically important for adrenal vein sampling procedures.
Nerve Supply
The celiac plexus and splanchnic nerves innervate the glands. The medulla receives sympathetic preganglionic fibers. Understanding these relationships helps explain how nearby pathology affects adrenal function and guides surgical approaches to the tissue.
Adrenal Cortex: Layers and Hormone Production
The adrenal cortex makes up about 90 percent of the gland. It has three concentric zones arranged from outside to inside. Each zone has unique cell types and produces different hormones.
The Three Cortical Zones
- Zona glomerulosa (outer layer): Cells arranged in ball-like clusters. Produces aldosterone, which regulates sodium and potassium balance. Controls blood pressure.
- Zona fasciculata (middle layer): The thickest zone. Contains lipid-rich cells in radial columns. Produces glucocorticoids (mainly cortisol) and some androgens.
- Zona reticularis (inner layer): Features a network of cell cords. Produces androgens and small amounts of glucocorticoids.
Easy Memory Trick
Remember GFR for Glomerulosa, Fasciculata, Reticularis. Or use salt-sugar-sex: salt (aldosterone from glomerulosa), sugar (cortisol from fasciculata), sex hormones (androgens from reticularis).
How the Cortex Gets Controlled
The hypothalamic-pituitary-adrenal axis controls cortical function. The hypothalamus releases corticotropin-releasing hormone (CRH). This triggers the anterior pituitary to release adrenocorticotropic hormone (ACTH). ACTH stimulates the cortex to produce cortisol.
This system uses negative feedback. High cortisol levels suppress CRH and ACTH release. This balance prevents overproduction. Understanding these layers and controls helps explain diseases like Cushing's syndrome and Addison's disease.
Adrenal Medulla: Structure and Function
The adrenal medulla makes up the inner 10 percent of the gland. It develops from neural crest tissue, making it part of the sympathetic nervous system. This embryological origin explains its unique function.
Chromaffin Cells
The medulla contains chromaffin cells arranged in clusters and cords. These cells stain with chromium salts, which is how they got their name. They are modified postganglionic sympathetic neurons.
Preganglionicfibers from the sympathetic nervous system connect directly to chromaffin cells. During stress or fight-or-flight response, these fibers trigger hormone release within seconds.
Catecholamine Production
Chromaffin cells release catecholamines during sympathetic stimulation. Approximately 80 percent is epinephrine (adrenaline) and 20 percent is norepinephrine (noradrenaline). Small amounts of dopamine are also released.
These hormones increase heart rate, dilate airways, raise blood glucose, and redirect blood to muscles. All these changes prepare the body for immediate action.
Catecholamine Synthesis Pathway
The synthesis follows a specific sequence. It starts with the amino acid tyrosine and progresses through L-DOPA, dopamine, norepinephrine, and finally epinephrine. The enzyme phenylethanolamine N-methyltransferase (PNMT) catalyzes the final step. This enzyme exists only in the medulla.
Pheochromocytomas are tumors of chromaffin cells. They cause excessive catecholamine release, leading to severe high blood pressure and other dangerous complications.
Blood Supply, Innervation, and Microarchitecture
The adrenal gland's blood supply reflects its high metabolic demands. The gland receives three separate arterial sources, as described above. These arteries subdivide into an extensive capillary network that fills both cortex and medulla.
The Cortical-Medullary Portal System
The gland has a unique vascular arrangement. Cortical capillaries drain into medullary capillaries before blood exits the gland. This portal system allows cortical hormones to directly influence medullary function.
Glucocorticoids from the cortex bathe the chromaffin cells. Cortisol stimulates the PNMT enzyme, increasing epinephrine production. This arrangement ensures coordinated stress response. When cortisol rises, epinephrine production increases simultaneously.
Nerve Supply Details
Sympathetic preganglionic fibers from the greater, lesser, and least splanchnic nerves innervate the medulla. These fibers synapse directly on chromaffin cells. Parasympathetic innervation is minimal. The cortex receives mostly postganglionic sympathetic fibers that control local blood flow.
Microscopic Features
The cortex is surrounded by a fibrous capsule. Cortical cells contain abundant smooth endoplasmic reticulum and mitochondria. These organelles support high steroid production. The sinusoidal capillaries provide intimate contact between hormones and blood, enabling rapid hormone transport.
Lymphatic drainage follows venous patterns. The right gland drains to interaortocaval lymph nodes. The left drains to left lumbar nodes. These structural features allow the gland to function as an integrated organ coordinating hormonal and neuronal responses.
Clinical Relevance and Study Strategies for Mastery
Adrenal anatomy connects directly to clinical conditions that healthcare students must recognize and understand.
Common Clinical Conditions
- Cushing's syndrome: Excessive cortisol production causes high blood sugar, high blood pressure, and distinctive physical changes.
- Addison's disease: Cortical insufficiency decreases cortisol and aldosterone, causing low blood pressure and electrolyte imbalances.
- Pheochromocytomas: Excess catecholamine production causes episodic high blood pressure and severe anxiety.
- Congenital adrenal hyperplasia: Enzyme defects in steroid synthesis, most commonly affecting 21-hydroxylase, alter hormone balance.
Understanding normal anatomy provides the foundation for grasping these pathological conditions.
Key Learning Objectives
Focus on these five areas when studying:
- Memorize the three cortical zones and their products using GFR or salt-sugar-sex
- Trace the HPA axis and understand negative feedback control
- Learn the catecholamine synthesis pathway and PNMT's role
- Distinguish cortical hormones (steroids) from medullary hormones (catecholamines)
- Understand embryological differences (mesodermal cortex versus neural crest medulla)
Effective Study Strategies
Visual learners should sketch the zones and label hormone products. Kinesthetic learners benefit from physically arranging zone cards. Active recall through flashcards works best because adrenal anatomy requires remembering multiple layers: anatomical locations, histological features, hormone names, enzymatic pathways, and clinical correlations. Spaced repetition strengthens long-term retention of this complex material.
